Foundation Parging & Coating

Niagara Falls, ON

The exposed concrete foundation of a brick home in Niagara Falls was masked and coated with a dark charcoal parge finish around the perimeter. The photo sequence follows preparation beside the paver walkway and steps through the finished porch base, gas meter wall, vent wall, side elevation, and garage corner.

Exposed concrete foundation beneath brick walls and basement windows, with tape and paper protecting the paver walkway in Niagara Falls
Continuous charcoal parge finish along the side of a brick home in Niagara Falls, beneath basement windows and around the corner beside a paver walkway
BeforeAfter

Drag the handle, or focus it and use the arrow keys, to compare before and after.

We parged the exposed foundation of a brick home in Niagara Falls. The crew masked the brick and siding above the foundation strip, then applied a charcoal grey parge coat around the porch base, the gas meter wall, the vent wall, the side of the house and the garage corner.

Project type
Foundation parging and coating
Location
Niagara Falls, ON
Photos
8 from the job site
Scope
Exterior foundation parging around the house
Prep
Brick and siding masked with tape and paper
Finish
Charcoal grey parge coat
Areas
Porch base, gas meter wall, vent wall, side elevation, garage corner

From first look to final reveal.

Select a stage to jump to its photos.

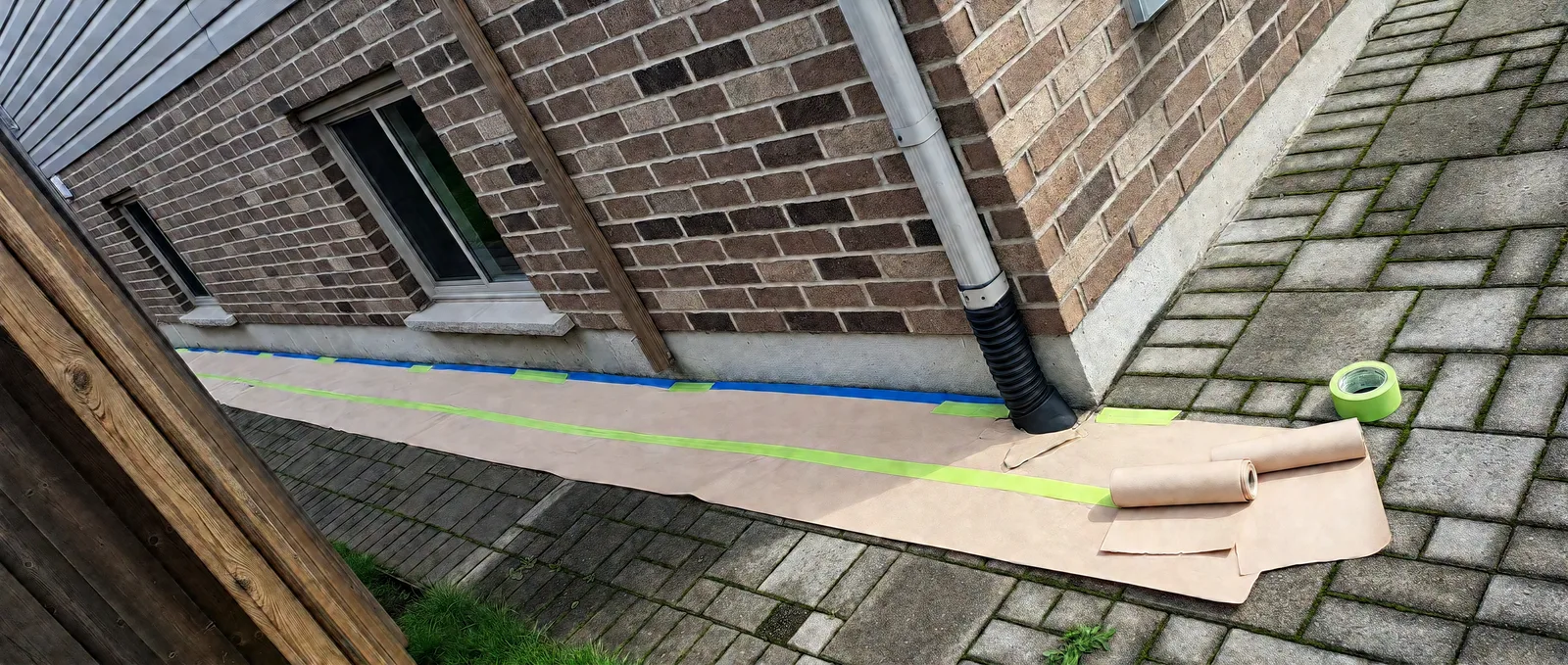

  1. Exposed concrete foundation beneath brick walls and basement windows, with tape and paper protecting the paver walkway in Niagara Falls
    01BeforeStarting condition

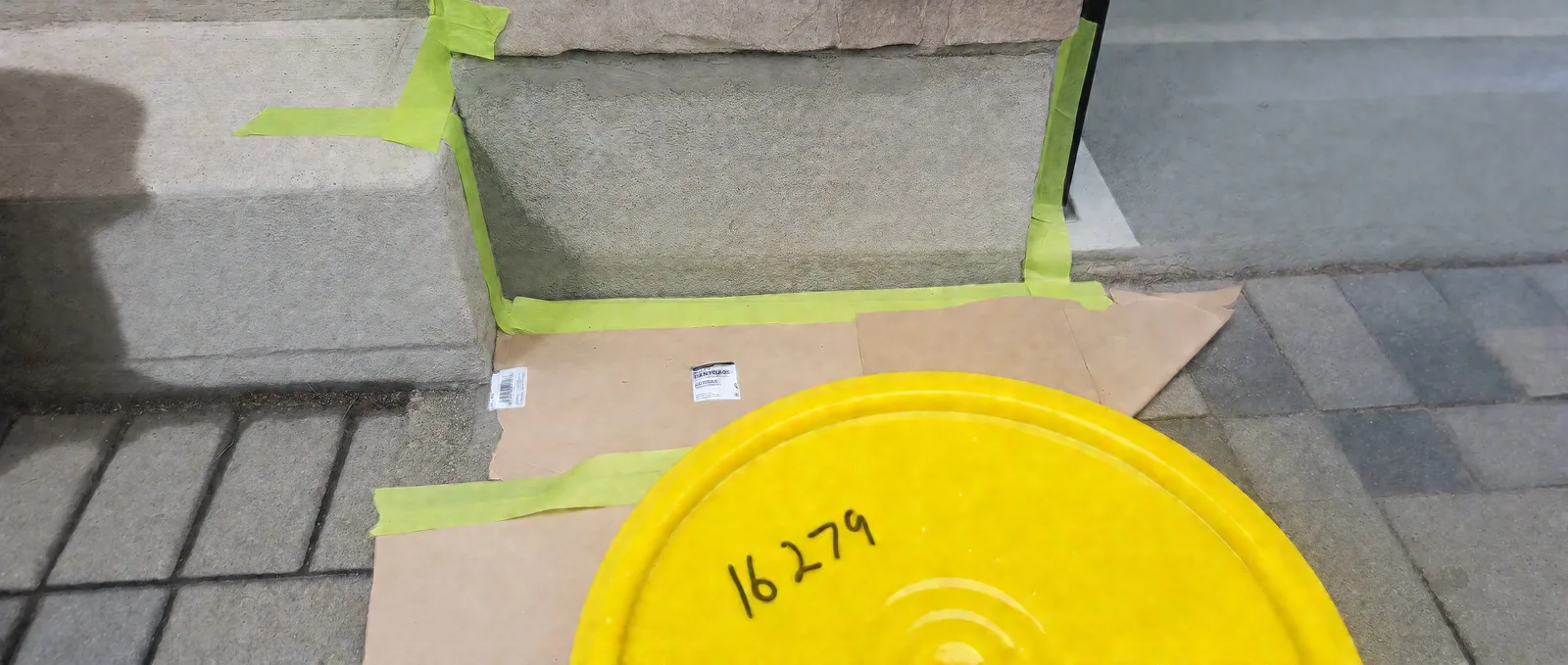

  2. Concrete foundation beside an entry step outlined with green masking tape, with paper covering the pavers during parging preparation
    02Build stage 1Work in progress

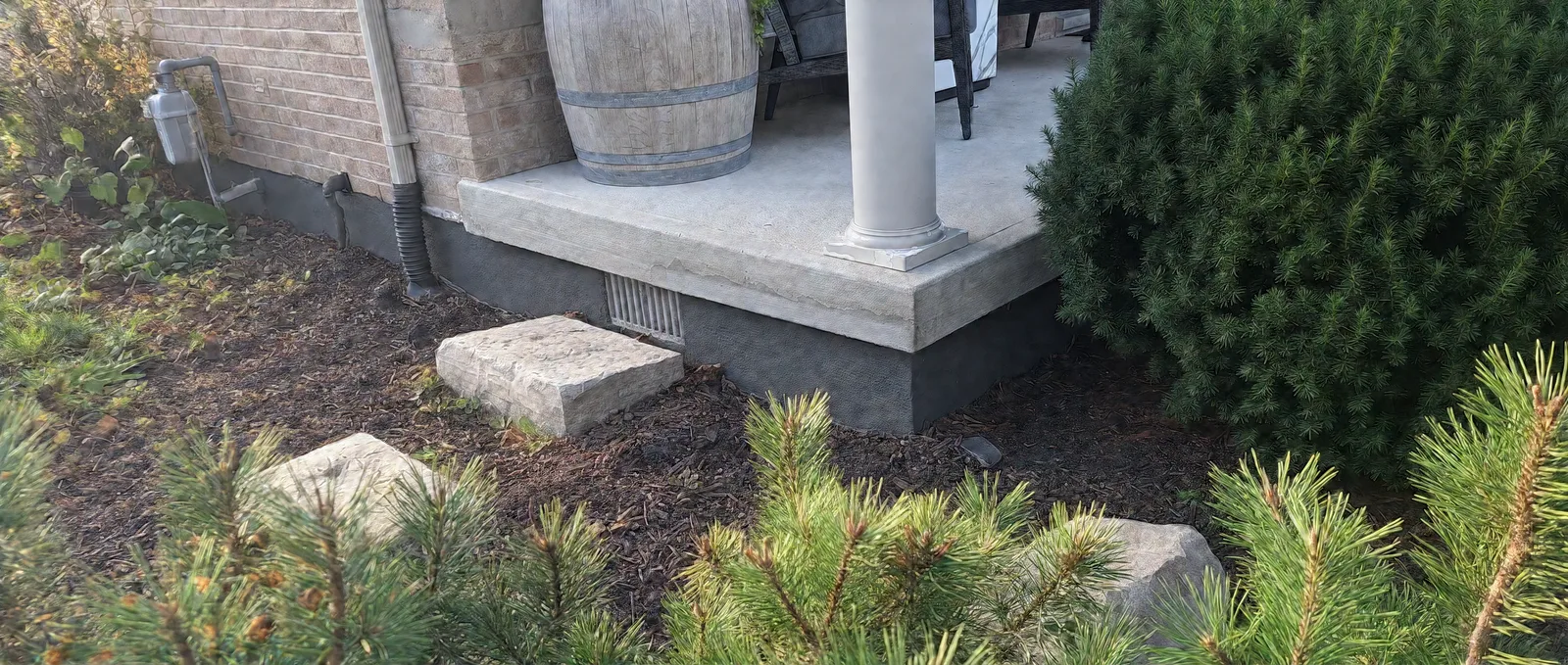

  3. Charcoal parge finish wrapping the corner of a porch foundation beneath a white column, with a vent and garden stones alongside
    03AfterFinished result
  4. Continuous charcoal parge finish along the side of a brick home in Niagara Falls, beneath basement windows and around the corner beside a paver walkway
    04AfterFinished result

Why this foundation needed a new coat

On most brick homes, a band of concrete shows between the bottom row of brick and the soil. That strip takes rain splash from the eaves, snow piled against the house and frost working into the surface every winter.

Bare or failing concrete in that band starts to flake and look patchy long before there is any structural problem. A parge coat protects the surface and gives the base of the house one clean colour all the way around.

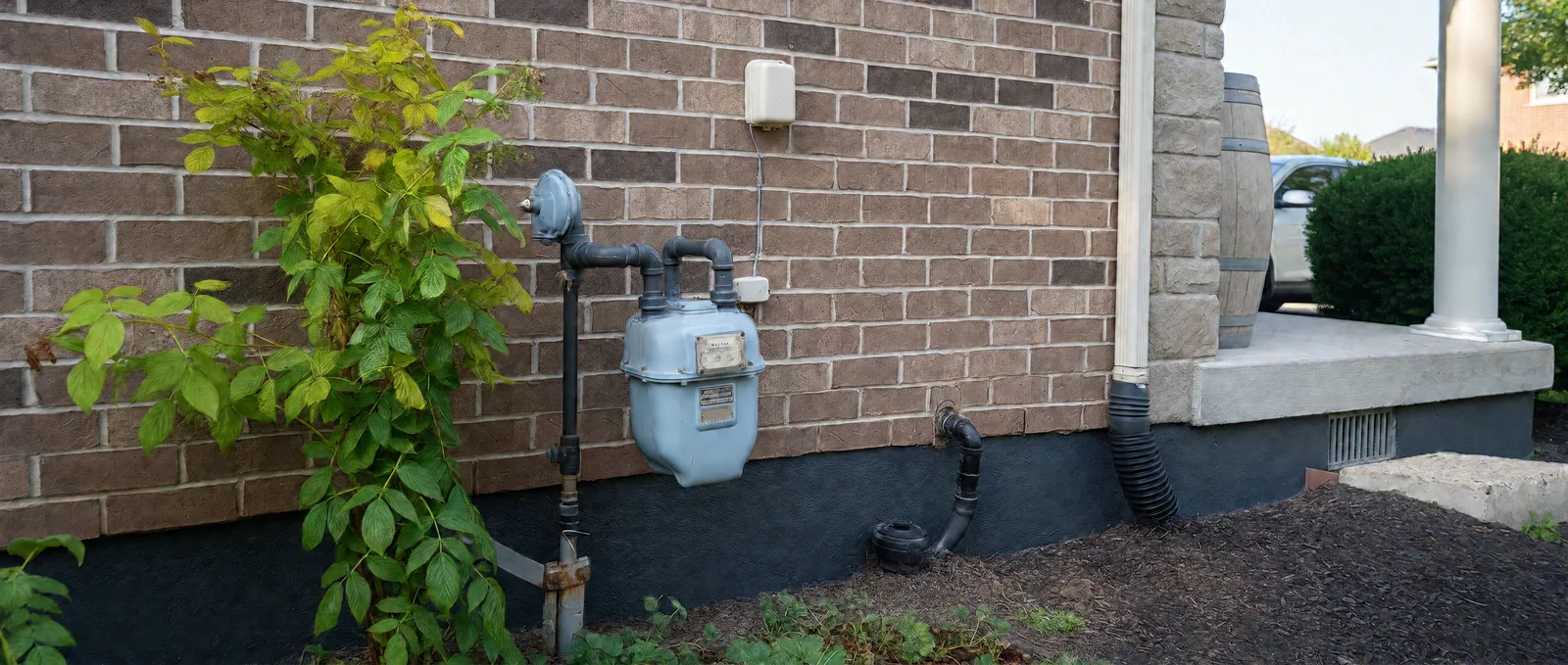

Finished charcoal foundation band below a brick wall, running beneath the gas meter and around pipes toward the porch base
Finished charcoal foundation band below a brick wall, running beneath the gas meter and around pipes toward the porch base

Masking before any mortar

Parging mix stains brick, and it is hard to get out of the texture once it cures. Before any mixing, the crew ran tape along the bottom edge of the brick and hung paper below it, so only the concrete strip stayed exposed.

The tape line sets the top edge of the finished coat. A straight, level line along the brick is what makes parging look like part of the house instead of a patch job.

Around the gas meter, the vents and the other fixtures on the wall, the crew masked each fitting so the coat could go up to it without covering it.

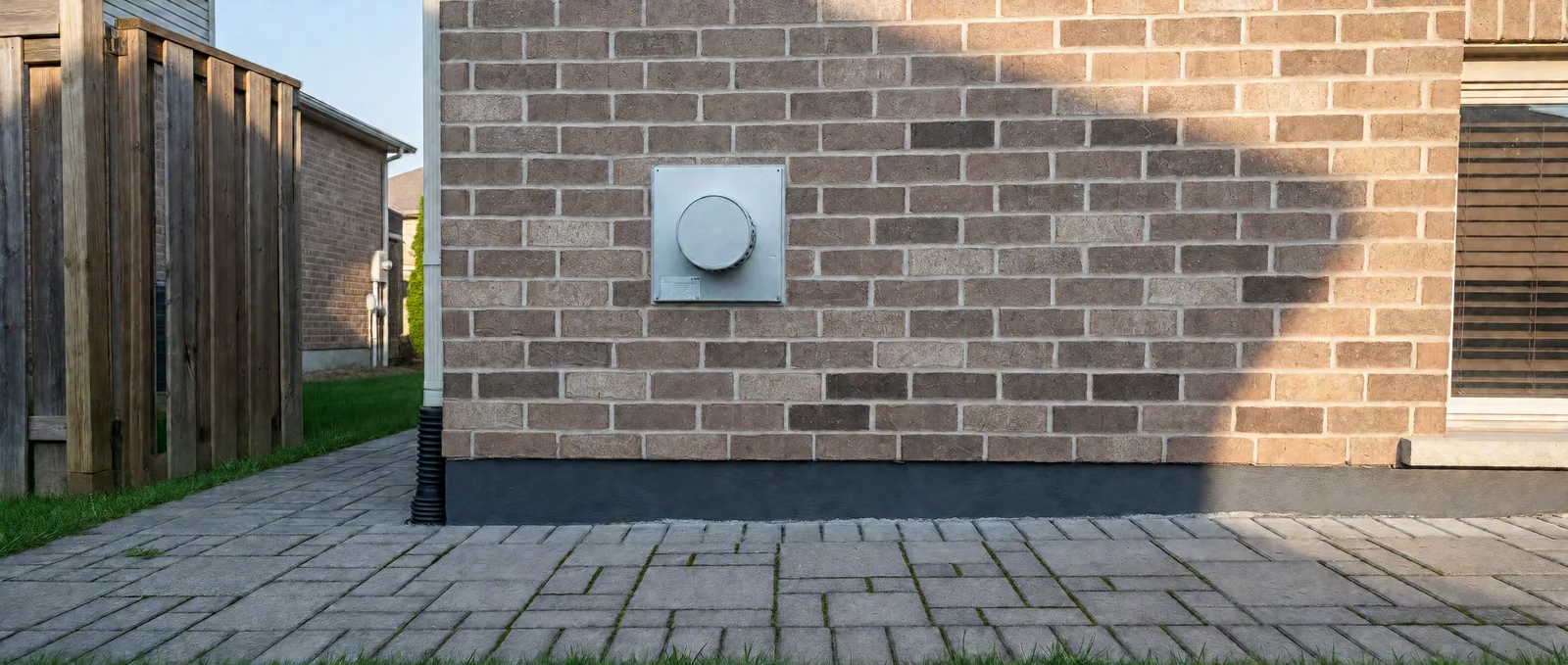

Charcoal-coated foundation below a brick wall with a round exhaust vent, bordered by an uncovered paver walkway
Charcoal-coated foundation below a brick wall with a round exhaust vent, bordered by an uncovered paver walkway

A charcoal coat around the whole base

The coat went on in charcoal grey, working around the house in sections: the porch base at the front, the wall with the gas meter, the wall with the vents, the long side elevation and the corner at the garage.

The crew troweled each section to a consistent finish and kept the top edge tight to the tape. Charcoal sits well under red or brown brick. It reads as a solid base and hides soil splash better than a light grey.

At the corners, the coat wraps around without a seam, so the band looks continuous when you walk around the house.

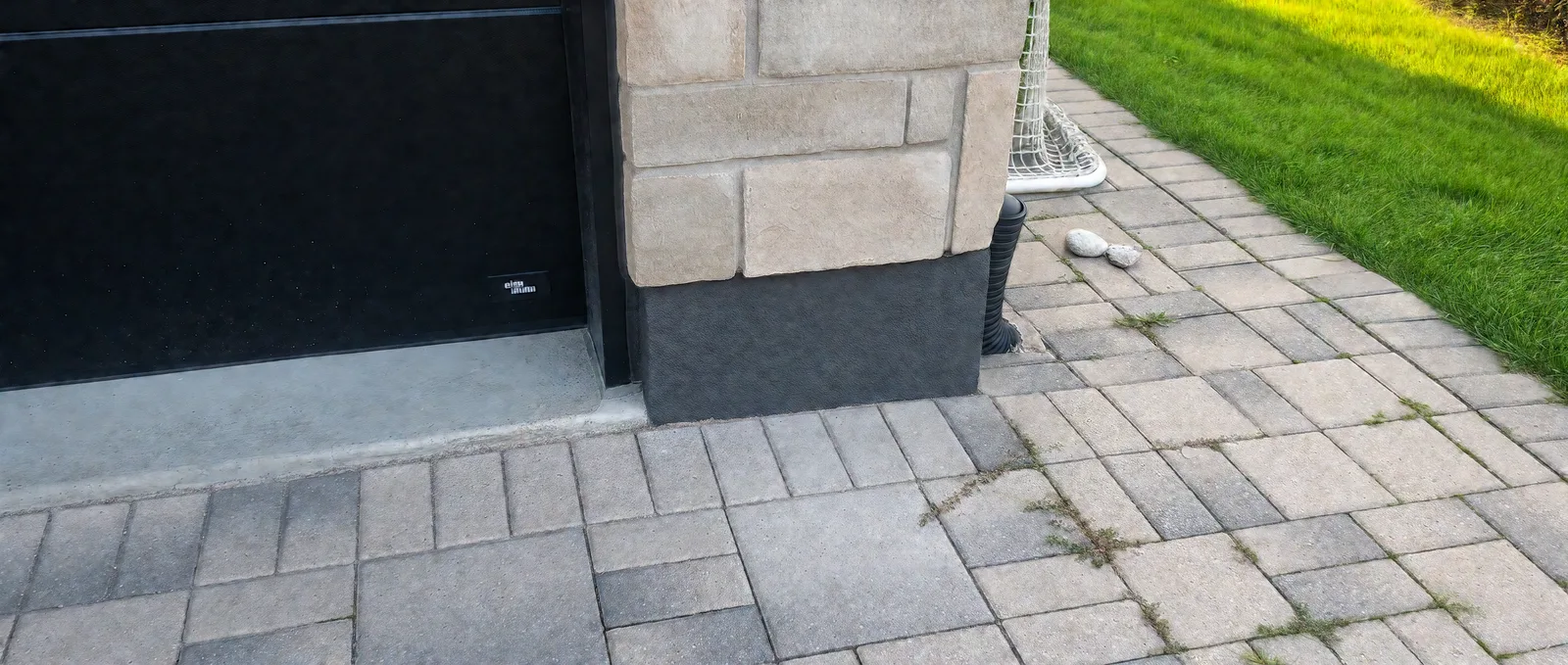

Finished charcoal parging beneath stone veneer at a garage corner, beside the black garage door and paver driveway
Finished charcoal parging beneath stone veneer at a garage corner, beside the black garage door and paver driveway

Keeping new parging in good shape

Parging lasts longest when water drains away from it. Check that downspouts discharge well away from the wall and that the soil and garden beds slope away from the foundation.

Avoid piling snow against the base of the house in winter, and keep mulch a little below the bottom edge of the coat. If a hairline crack shows up after a few freeze-thaw seasons, a small touch-up early keeps water from getting behind it.

Questions about this project.

Something else on your mind? Ask us directly.

What is foundation parging?

Parging is a cement-based coat troweled over the exposed part of a concrete or block foundation. It protects the surface from water and frost and gives the base of the house a finished look.

Will parging stain my brick?

It can if the brick is not protected. On this Niagara Falls home the crew masked the brick with tape and paper before mixing, so the coat stopped at a clean line under the bottom course.

Can you parge around a gas meter and vents?

Yes. We mask each fitting and bring the coat up to it without covering it. Meters and vents must stay clear and accessible.

What colour should foundation parging be?

Grey is the most common, but a darker charcoal suits red or brown brick and hides dirt splash. Tell us the look you want at the quote visit.
